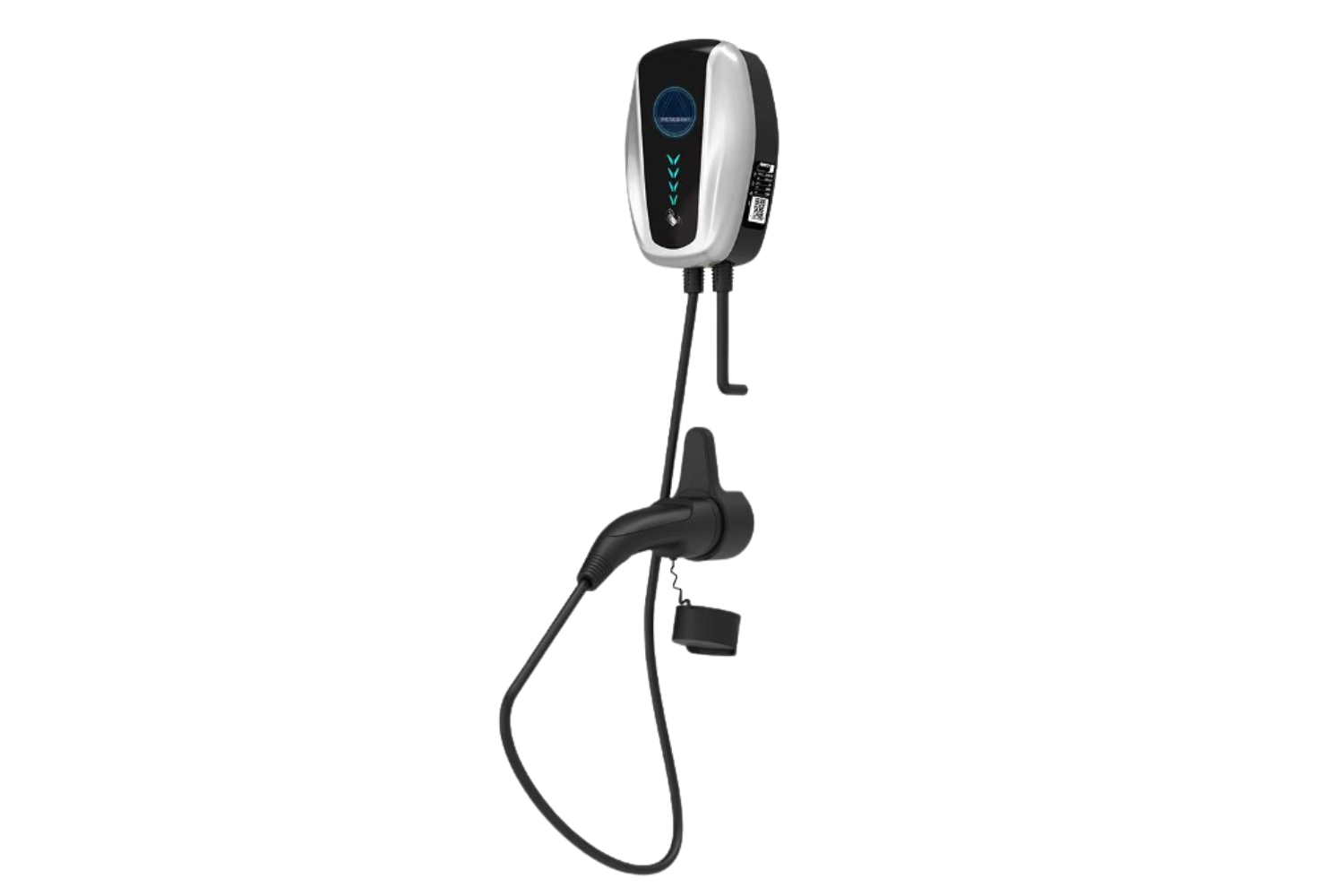

7KW AC EV Charger Operation Model
- Interface Type: Type 2 Gun: Single
- Input Voltage: 220Vac+-20%
- Rated Charging Current: 32A; 50Hz-60Hz
- Available color: Star Grey
- Display Interface: 3-inch LCD capacitive screen
- Operating temperature / Humidity: -20~55degree/5%~95%
- Level protection >_ IP54
- Storage environment no pollution, such as salt, acid, soot, etc.
- Storage temperature: ~40~80 degree C
- Working Altitude: 2000m
- Charging Cable Lenght: 5 Meters (Customizable)
- Certification: Third party type test

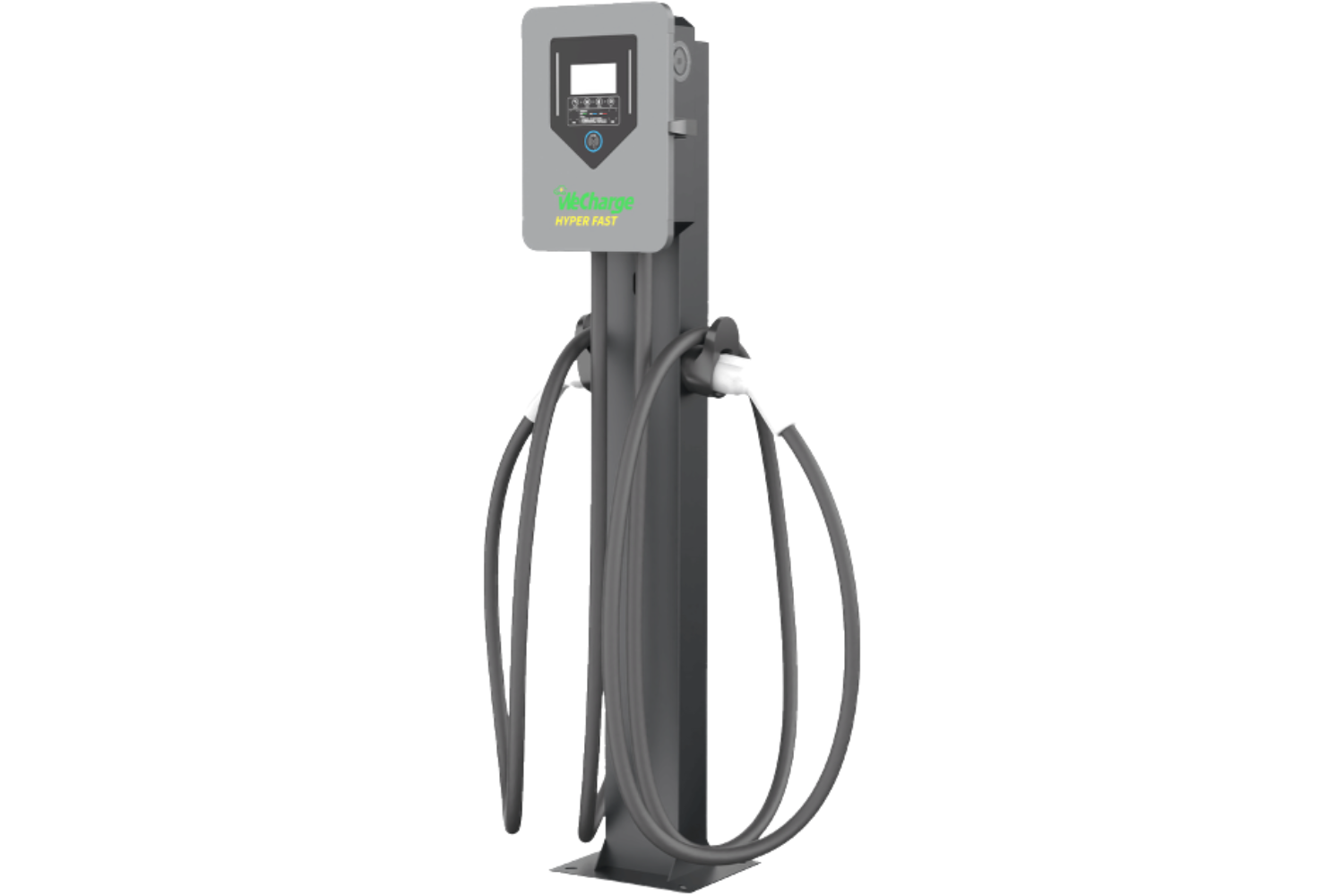

22KW AC EV Charger Operation Model
- Design standard: GB/T 18487.1-2015, GB/T 20234-2015
- Input Voltage: 220Vac+-20%
- Gun: Double
- Rated charging current: 64A
- Available color: Star Grey
- Display Interface: 4.3 inch LCD capacitive screen
- Operating temperature / Humidity: -20~55degree/5%~95%
- Level protection >_ IP54
- Storage environment no pollution, such as salt, acid, soot, etc.
- Storage temperature: ~40~80 degree C
- Working Altitude: 2000m
- Charging Cable Lenght: 5 Meters (Customizable)
- Certification: Third party type test

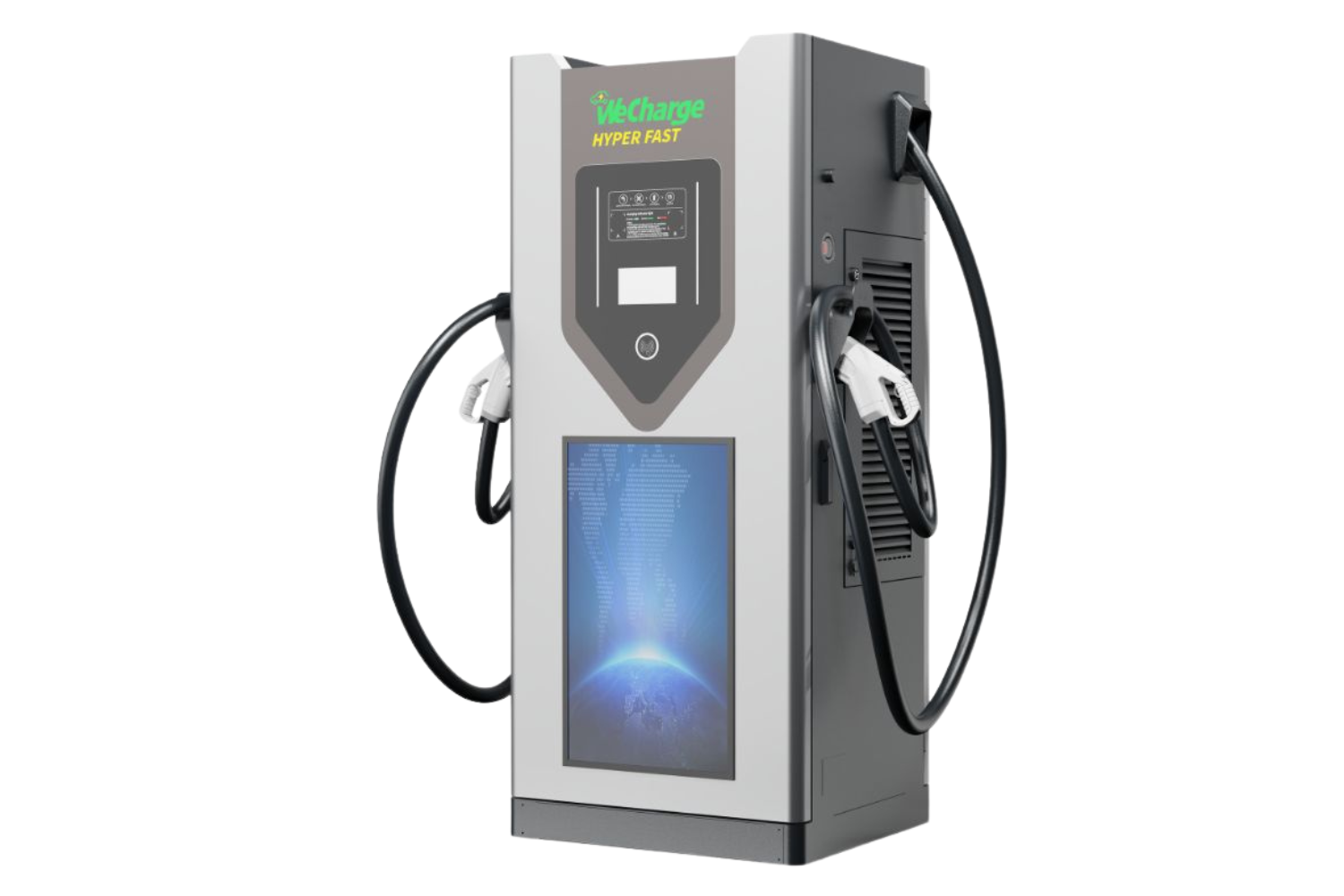

60KW - 240KW DC EV Charger
- Power: 380Vac+_10% (L1+L2+L3+N+PE)
- Gun: 200VDC ~ 1000VDC
- Current: 60 ~ 240A
- Color: White and Grey
- Operating temperature / Humidity: -20~55degree/5%~95%
- Level protection >_ IP54
- Storage environment no pollution, such as salt, acid, soot, etc.
- Storage temperature: ~40~80 degree C
- Working Altitude: 2000m
- Charging Cable Lenght: 5 Meters (Optional)
- 768mm*665mm*1800mm
- Weight: 325KG
- Certification: Third party type test
